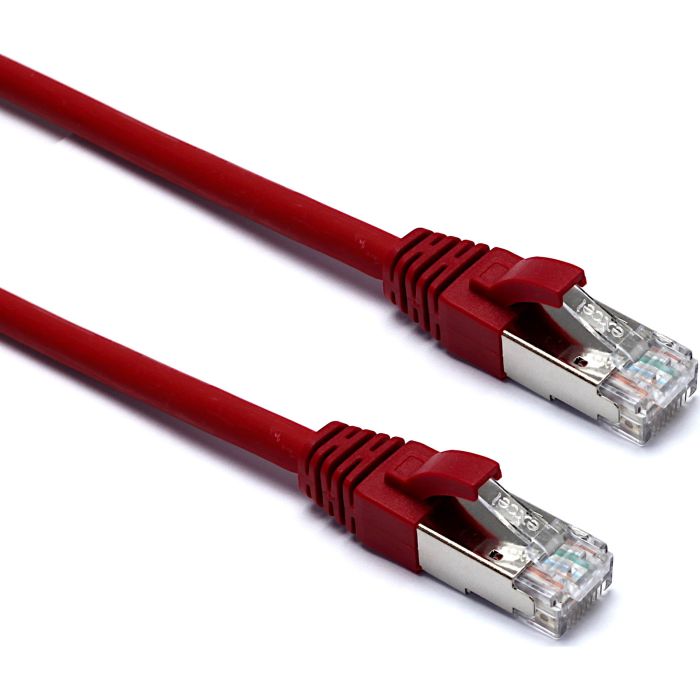

EXL CAT6A 10M FFTP LSOH PL-RED

Excel Category 6A (Augmented Category 6) patch leads take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6A performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet._x000D_ _x000D_ Each Excel Category 6A patch leads consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 Screened plugs, terminate the cable, and each lead is fitted with colour coded slimline moulded boots, suitable for use in high density router or switch blades._x000D_ _x000D_ - Specified to 500MHz_x000D_ - Suitable for 10 Gigabit, 10GBase-T, Ethernet application_x000D_ - Individual foil screen over each pair_x000D_ - Blade style moulded strain relief boot with clip protector_x000D_ - CIBSE TM65 Embodied Carbon: 2.096 kg CO2e
